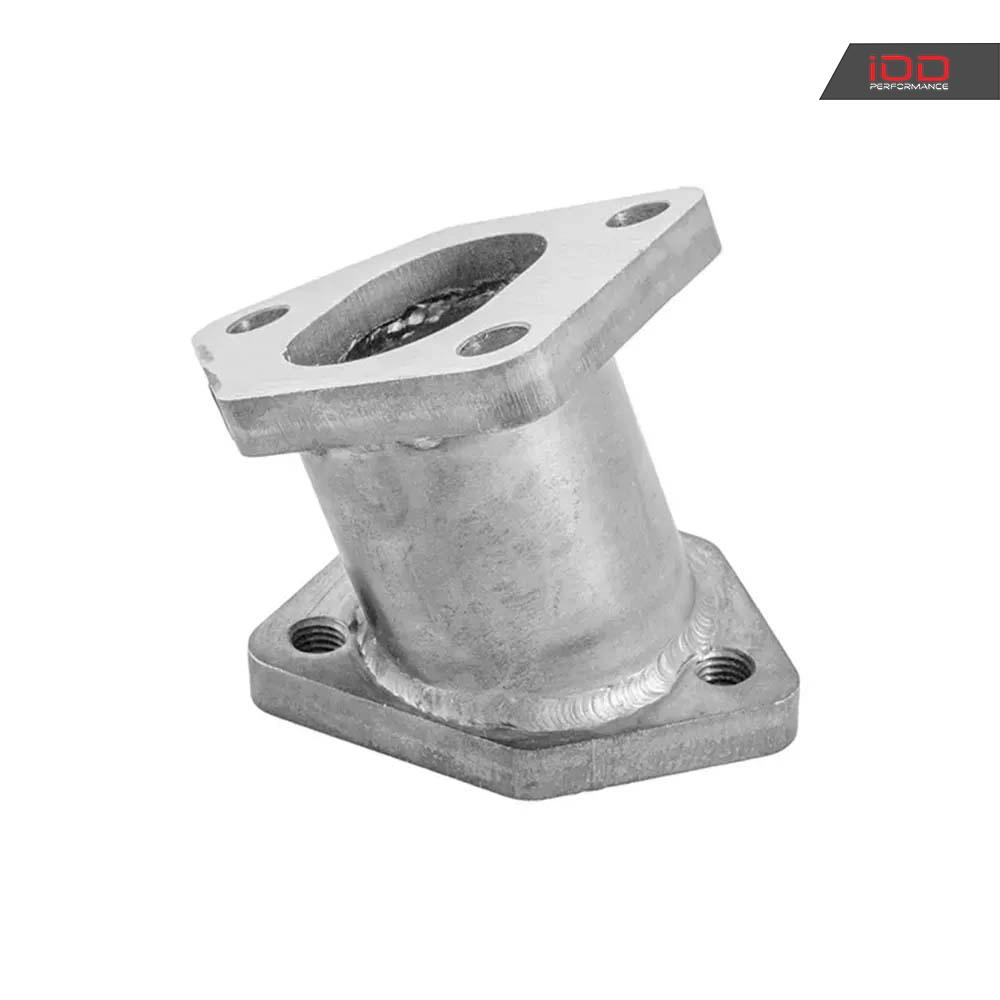

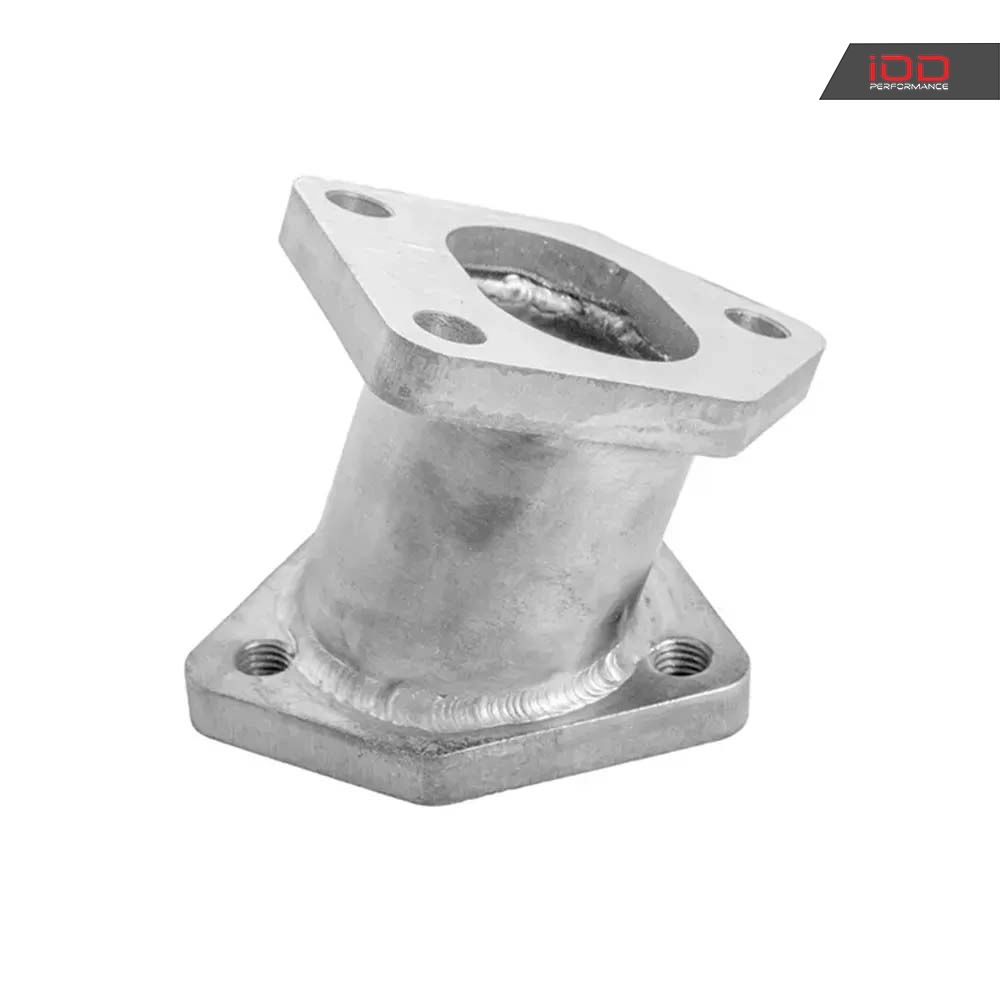

GT2260V BMW M57 Top Mount Turbo Adapter

Beschrijving

Key features of the solution:

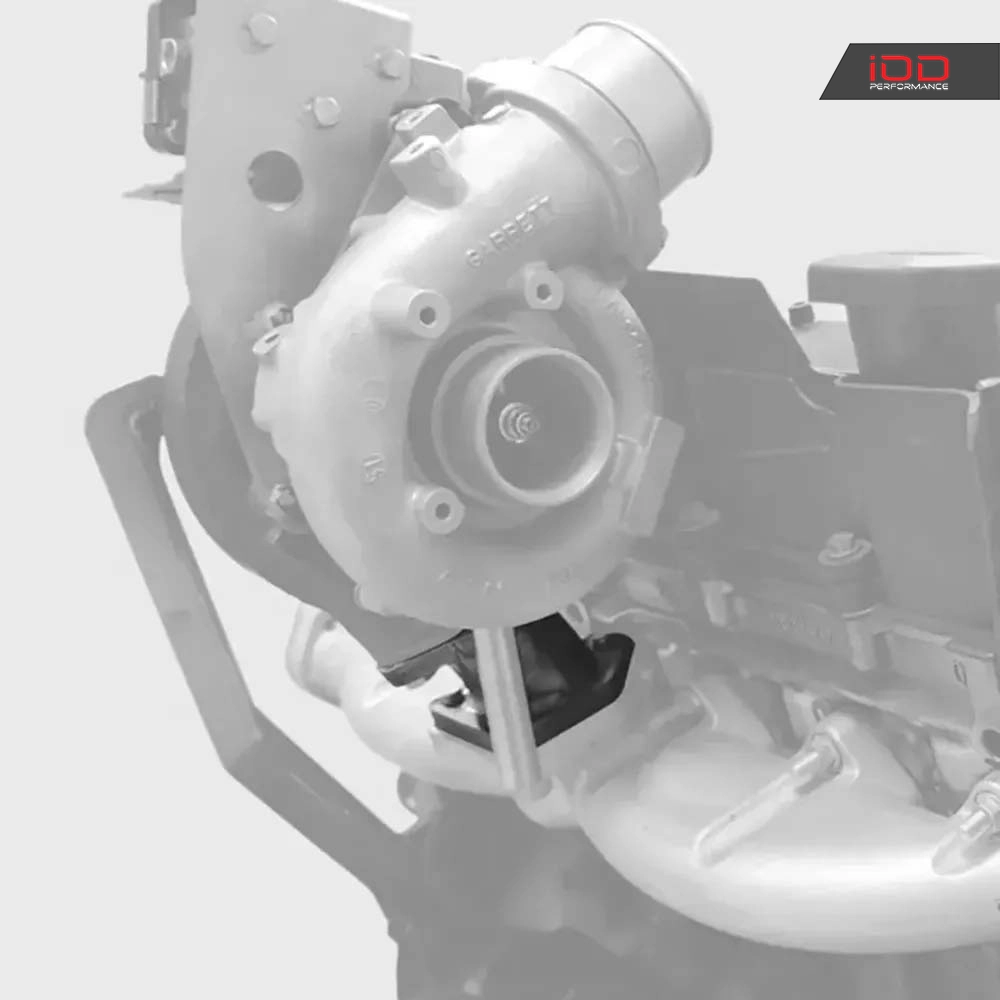

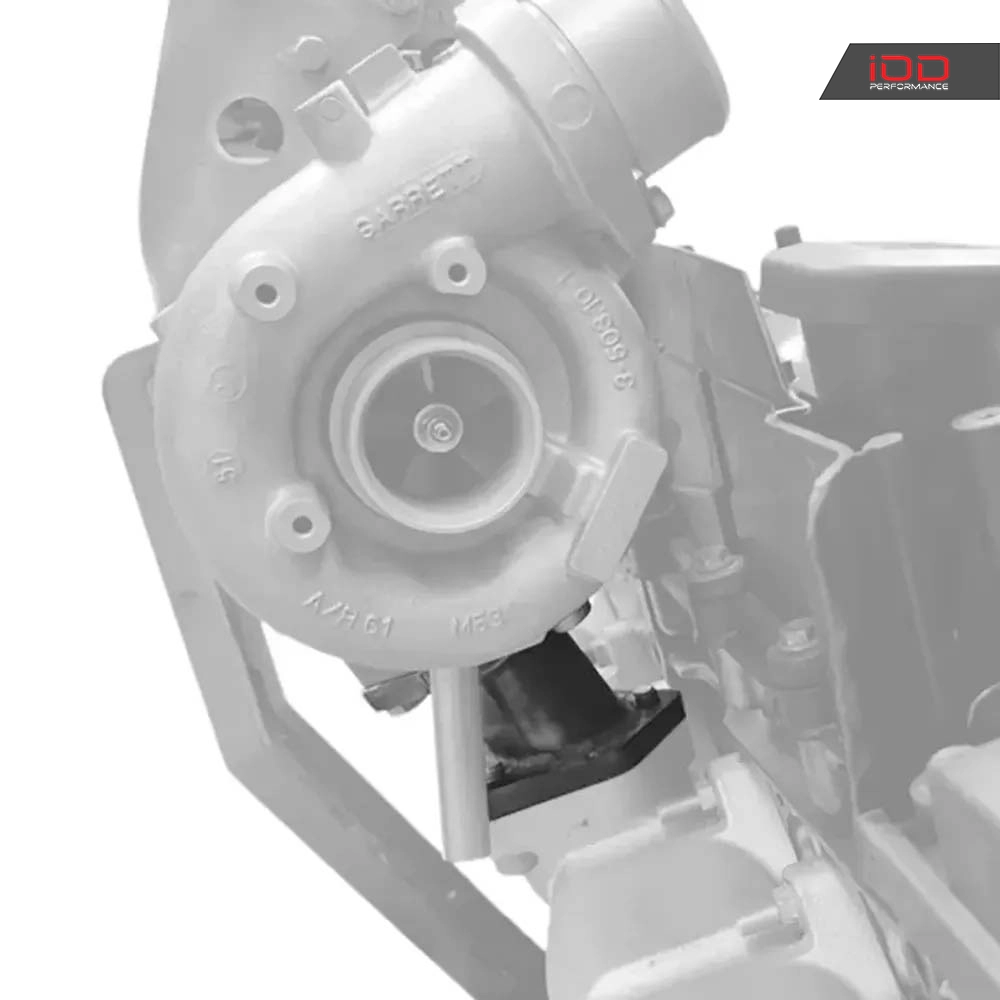

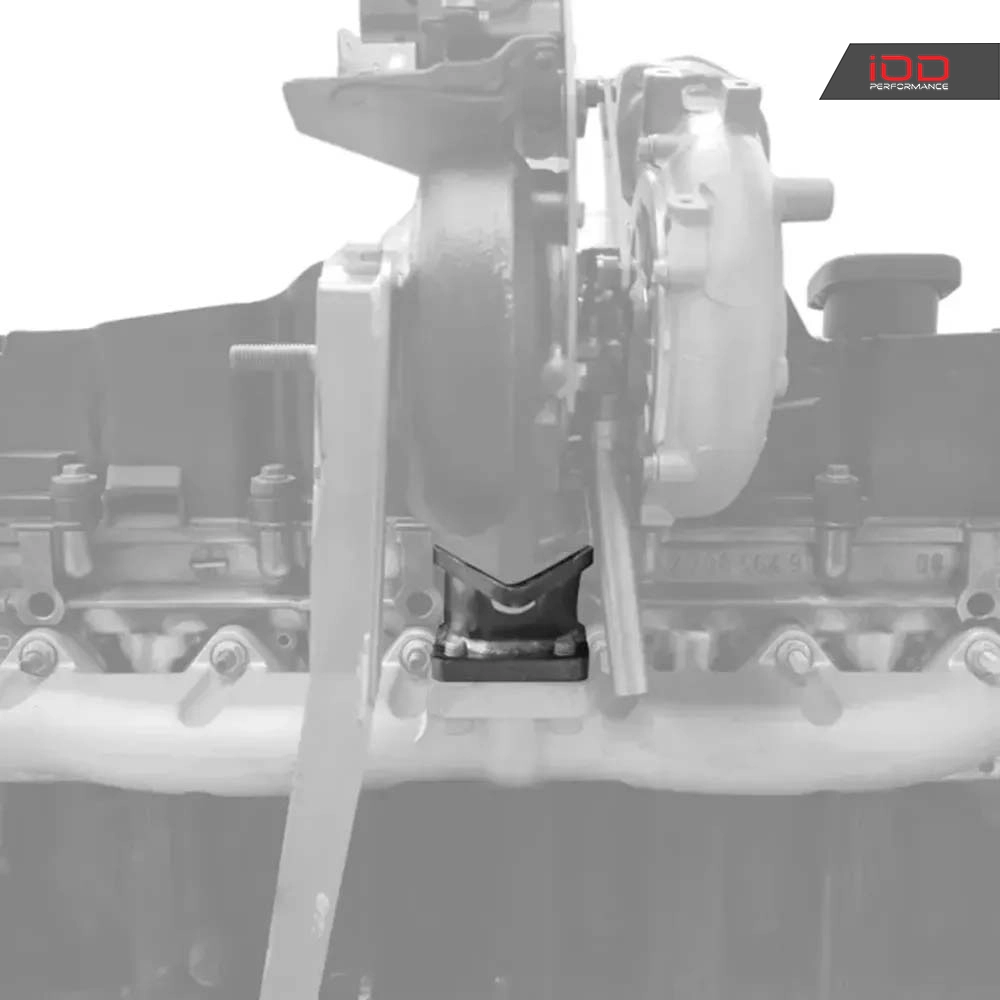

• Places the turbocharger above the exhaust manifold
• Easier access during failure or service
• The turbocharger is less exposed to external factors that prevail in its original position – water, dust, mud
• Mounting the turbocharger at the top of the engine simplifies the intake and exhaust system
• Top mounting of the turbocharger makes it safe and resistant to external damage in this place

Technical specifications:

• In addition to installing the adapter, modification of the turbocharger is required.
• The adapter uses the serial turbocharger gasket.

The set includes an adapter with mounting screws.

Oil drain, turbocharger support and oil supply available on other auctions.

Compatible turbochargers:

Turbocharger on vacuum (3 bolts):

GARRET – 725364-0004 725364-0006 725364-0012725364-0018 725364-0021 725364-0022 725364-12 725364-18 725364-21 725364-22 725364-4 725364-5004S 725364-5006S 725364-5012S 725364-5018S 725364-5021S 725364-5022S 725364-6

OE – 11657789083 11657789081 7789081 7789083 11657789083E 7789081G 11789083E 7789083H 7789083J 7789083L09

Vehicles:

BMW 530d / 730d (E60 / E61 / E65) 218HP

Engine:

M57N 6 Zyl. Euro 3

Turbocharger on vacuum (3 bolts):

GARRET – 728989-0001 728989-0003 728989-0007 728989-0009 728989-0010 728989-0015 728989-0016 728989-0018 728989-1 728989-10 728989-15 728989-16 728989-18 728989-3 728989-7 728989-9 728989-5001S 728989-5003S 728989-5007S 728989-5009S 728989-5010S 728989-5015S 728989-5016S 728989-5018S 728989-0019 728989-5019S 728989-19

OE – 11657790326 11657790328 11657794025 7790326 7790326K08 7790328 7790328J 11652414334

Vehicles:

BMW 330d (E46) 204HP

BMW 330xd (E46) 204HP

BMW X3 3.0d (E83) 204HP

Engine:

M57 EURO 3

M57 D30 6 Zyl.

M57TU

Turbocharger on electronic actuator (3 screws):

GARRET – 750773-0001 750773-0004 750773-0007 750773-0013 750773-0015 750773-0017 750773-1 750773-13 750773-15 750773-17 750773-4 750773-5001S 750773-5004S 750773-5007S 750773-5013S 750773-5015S 750773-5017S 750773-7

OE – 7790309E 7790309F 7790309H 7790309K 7790311K 11657790311 7790309 7790311 11657790309

Vehicles:

BMW 330d (E46) 204HP

Engine:

M57N EURO 4

Turbocharger on electronic controller (3 screws):

GARRET – 742730-0007 742730-0003 742730-0004 742730-0007 742730-0013 742730-0015 742730-0018 742730-0019 742730-1 742730-13 742730-15 742730-18 742730-19 742730-3 742730-4 742730-5001S 742730-5003S 742730-5004S 742730-5007S 742730-5013S 742730-5015S 742730-5018S 742730-5019S 742730-7 742730-0004 742730-4 742730-5004S

OE – 11657790308 7790306 7790308 11657790306 11657790306J 11657790308G 11657790308L 11657790308N 7790306G 7790306J 7790306L 7790308G 7790308L 7790308N 11652414330

Vehicles:

BMW 530d (E60/E61) 218 ​​HP

BMW X5 3.0d (E53) 218 ​​HP

Engine:

M57N 6 Zyl. Euro 4
