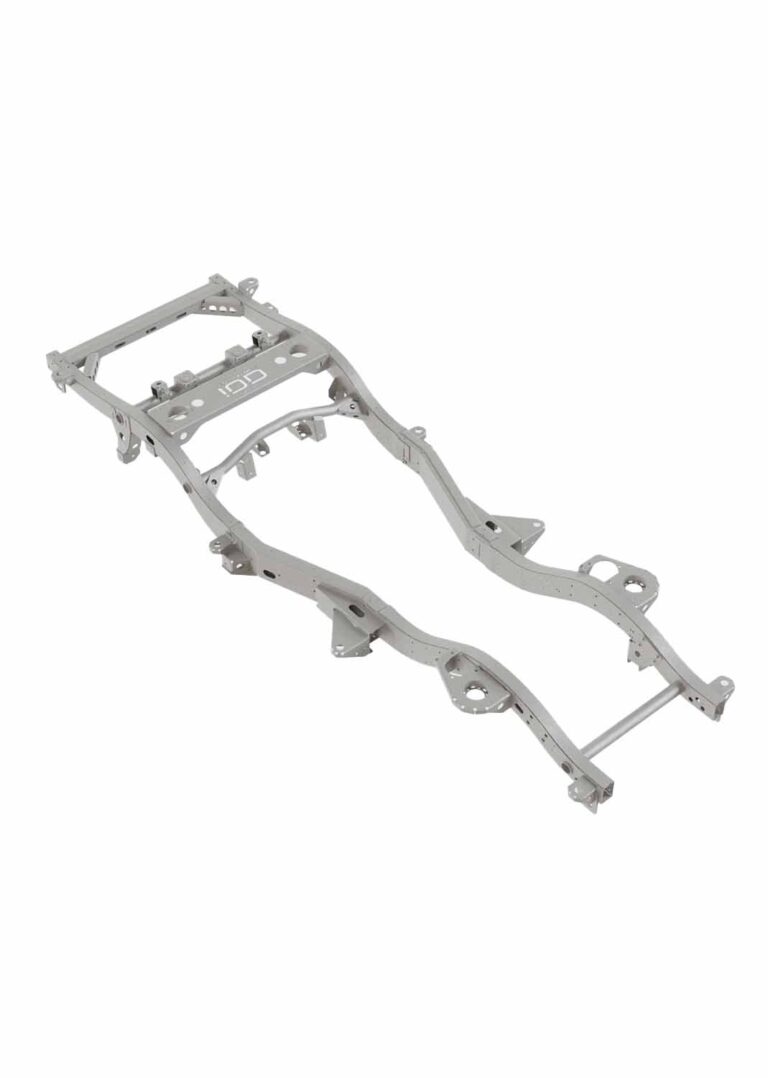

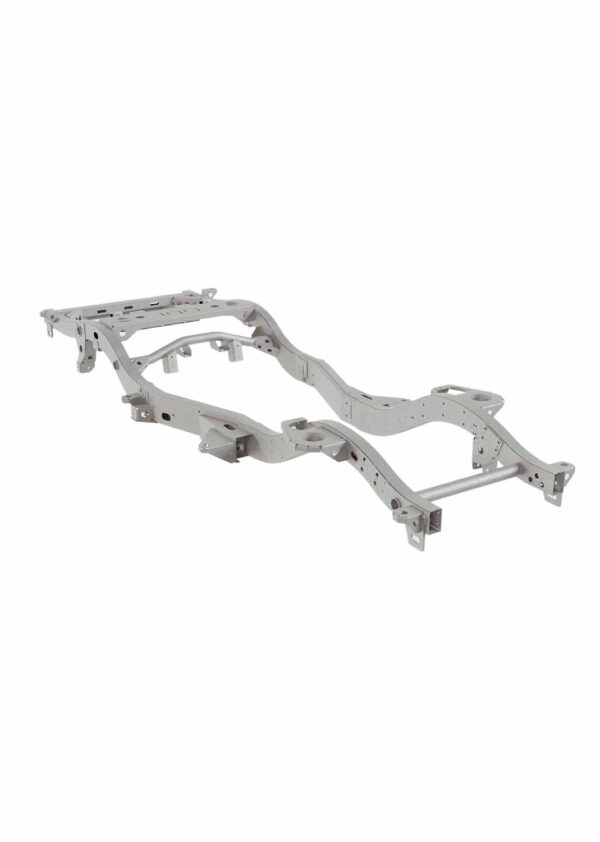

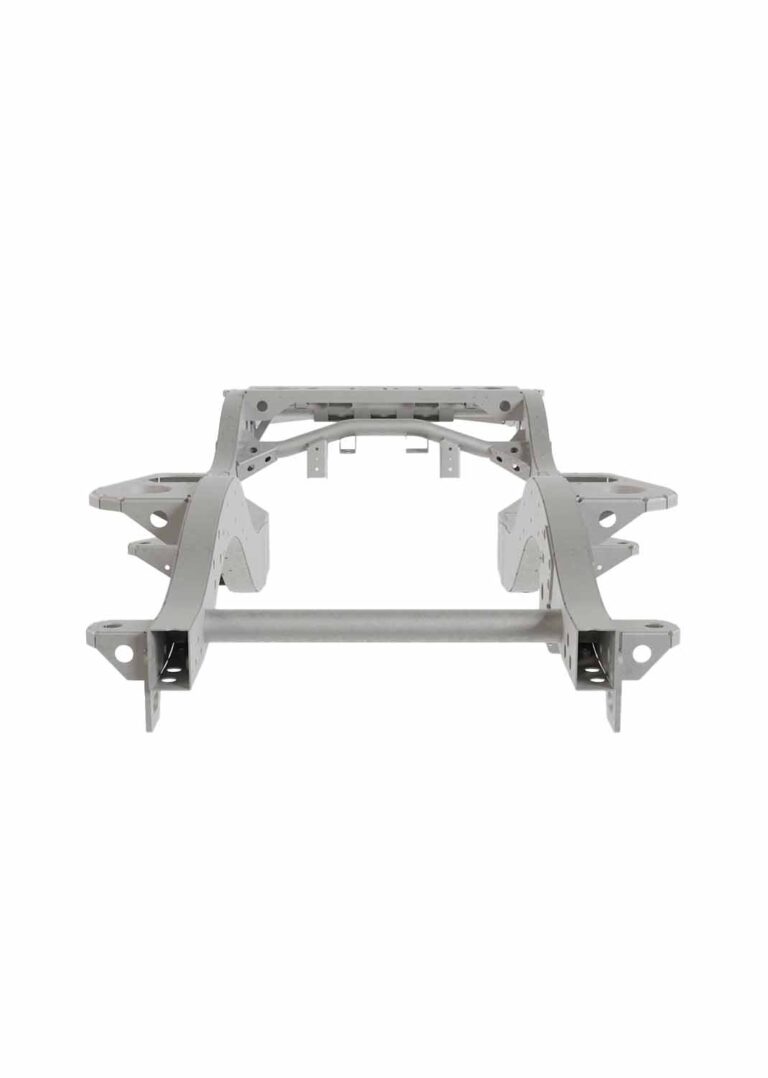

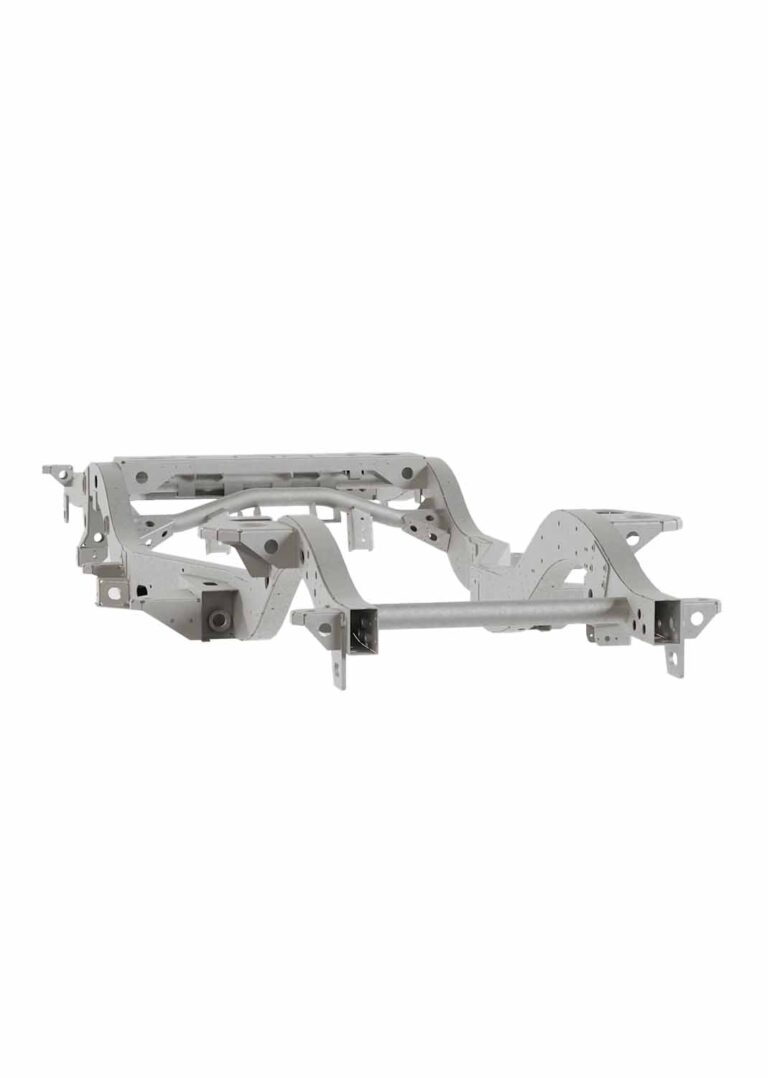

Frame Nissan Patrol Y60 SWB RHD. Is a precision-made structural component that allows you to completely replace, renovate or strengthen the structure of your vehicle. Made of high-quality, hot-dip galvanized steel, it provides corrosion resistance, resistance to extreme loads and longevity, even in the harshest off-road conditions.
For the frame it is necessary to purchase engine mounts:
• Engine RD28 (IOD-00026)
• Engine ZD30 (IOD-00027)
• Engine TD42 (IOD-00123)
• DIY Universal Engine Mounts (IOD-00121)
Waiting time for the execution of the frame is about 3 months after the payment/prepayment of min 30%. The cost of transportation is determined individually one week before the end of production.
Uitverkocht
Key advantages of the Nissan Patrol Y60 SWB Right Hand Drive frame:
– Steering box mounting on the right side.
– Perfect fit of factory mounting points
– Durable galvanized steel construction
– Additional accessory mounting points under the chassis
– Design strengthened relative to series
– Reinforced stringers at the rear and front of the frame
– Reinforced rear spring cups
– Reinforced front spring mounts
– Reinforced panhard mounts
– Holes for easy cleaning of the inside of the frame
– Holes for bolting the thresholds
– Mounting of additional fuel tank
– Bolt-on engine mounts, allowing free replacement (SWAP M57/M60/LS/JZ/UZ/OM606) without damaging the anti-corrosion coating
– Lowered beam position, allows large suspension lift
– Reinforced front bumper mount
– Threads made in thick-walled bushings – can be reamed and re-threaded in case of thread damage.
– Ideal for off-road vehicle reconstruction and restoration
Technical specifications:
– Material: hot-dip galvanized steel
– Compatibility: Nissan Patrol Y60 SWB (English version)
– Installation: Precision fit to original vehicle mounts
The price is for a complete frame ready for installation.
The kit does not include engine mounts, they must be purchased separately
| Gewicht | 230 kg |
|---|---|
| Afmetingen | 400 × 140 × 40 cm |
